DF4A

Product Overview

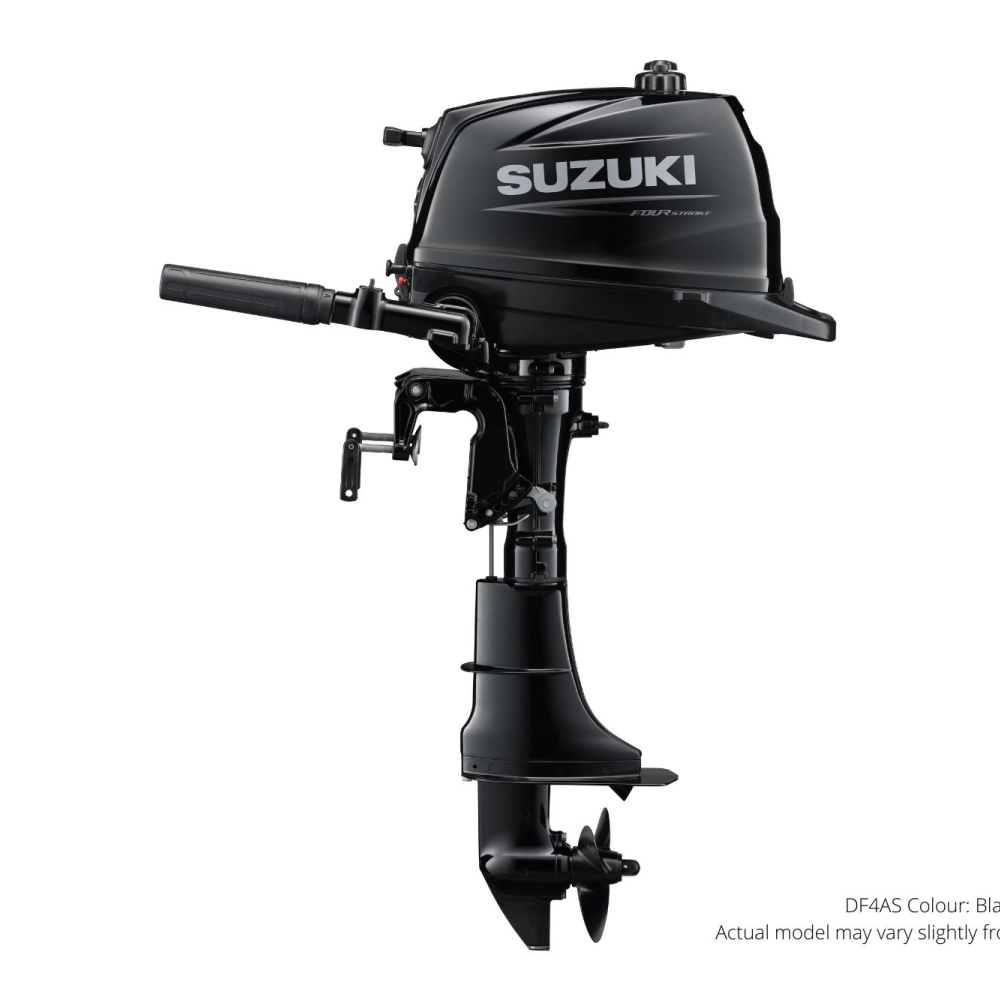

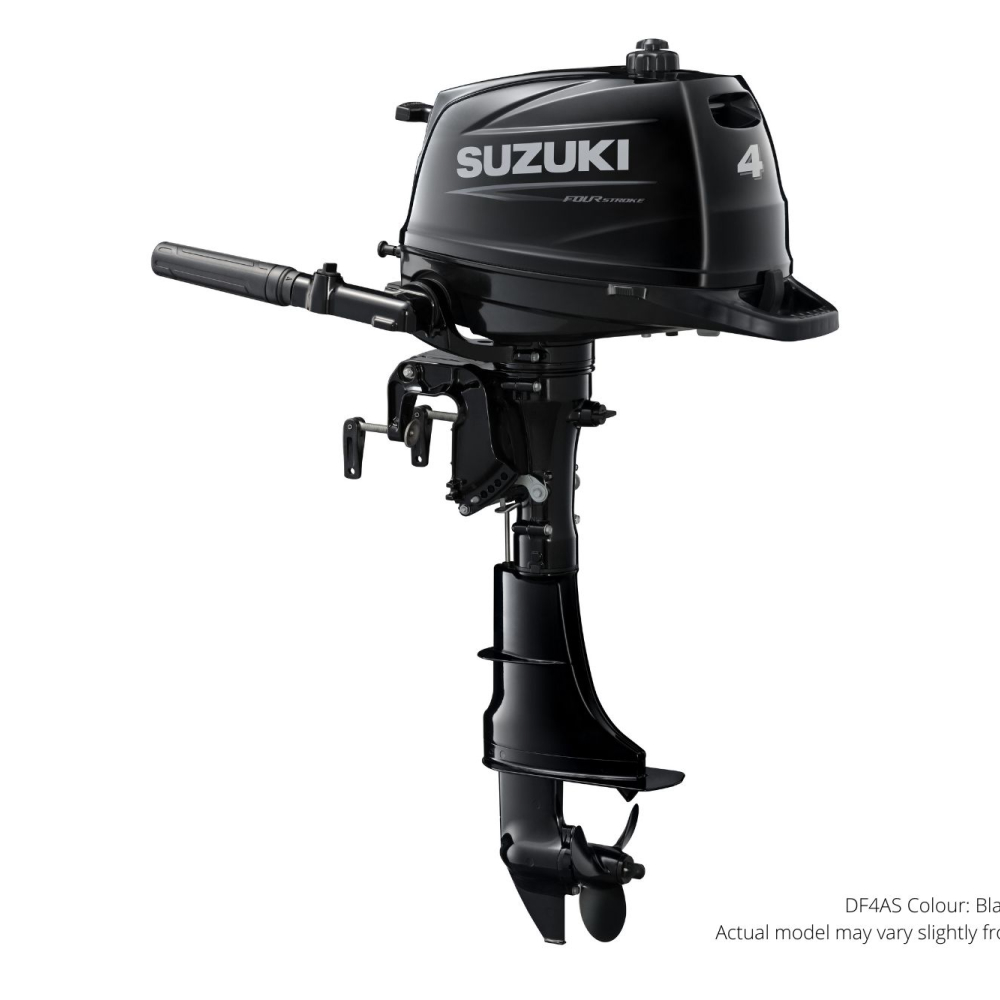

The Suzuki Marine DF4A outboard motor is a testament to innovation in marine technology, offering a compact and lightweight design without sacrificing power. With 4 HP, it provides reliable and eco-friendly performance, making it an ideal choice for small boats and inflatables.

Specifications

  • Specifications:
    • Starting System: Manual
    • Transom Height (in): 15″
    • Weight (kg/lbs): 24/52.9
    • Valve Train: OHV, 2 Valves
    • Piston Displacement (cc): 138
    • Maximum Output (HP): 4
    • Bore x Stroke (mm): 60.4 x 48
    • Operating Range (rpm): 4,000 – 5,000
    • Fuel Delivery System: Carburetor
    • Oil Pan Capacity (L): 0.7
    • Alternator: 12V 5A
    • Trim Type: 5 Tilt Pin Positions
    • Gear Ratio: 1.92:1
    • Control System: Mechanical
    • Recommended Fuel: 87 Octane
    • Standard Propeller (in): 3 x 7.5 x 6.5
    • Propeller Selection (Pitch): 6″-7″
    • Warranty: 60-month warranty (includes 36-month factory warranty plus 24-month promotion warranty)

Features

  • Features:
    • Easy start system
    • Three-way storage capability
    • Enhanced fuel efficiency
    • Large capacity 0.7-liter oil pan
    • Offset crankshaft design for stability
    • Quiet operation technology
    • Advanced anti-corrosion system
    • Low emissions, high efficiency operation
