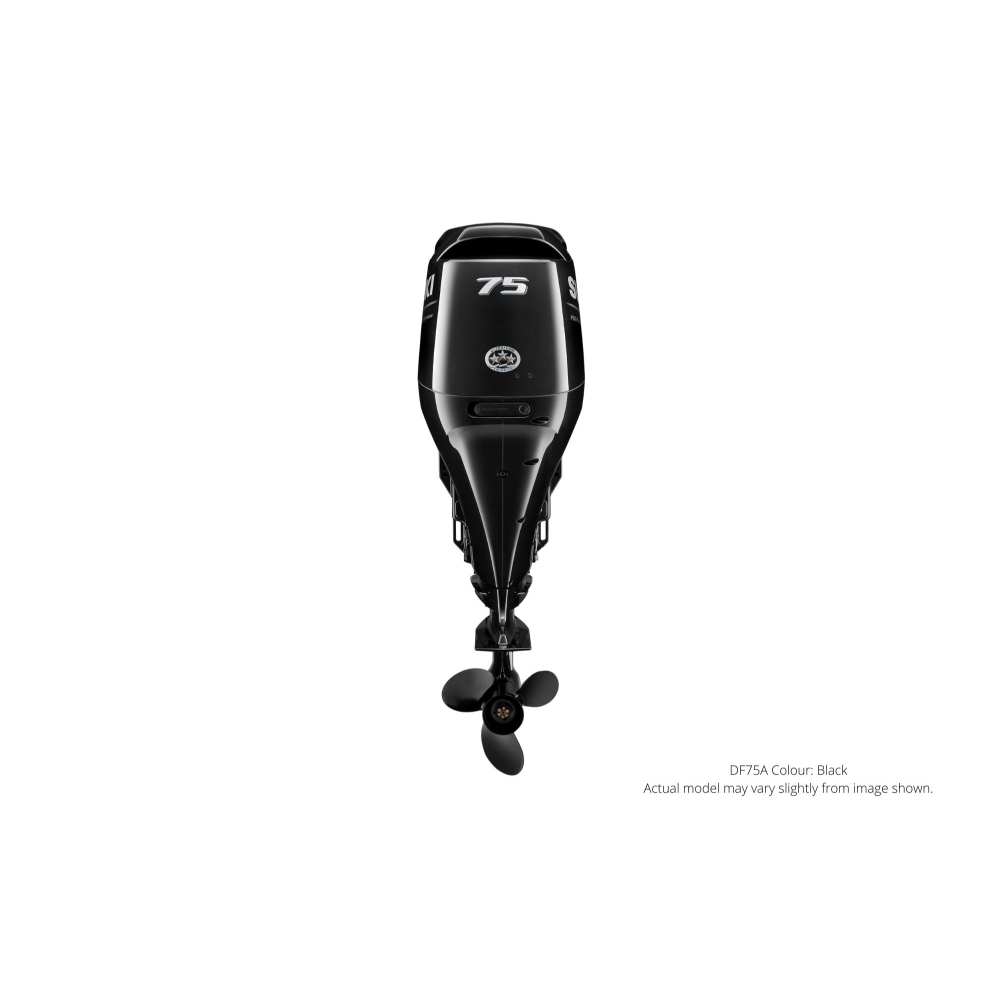

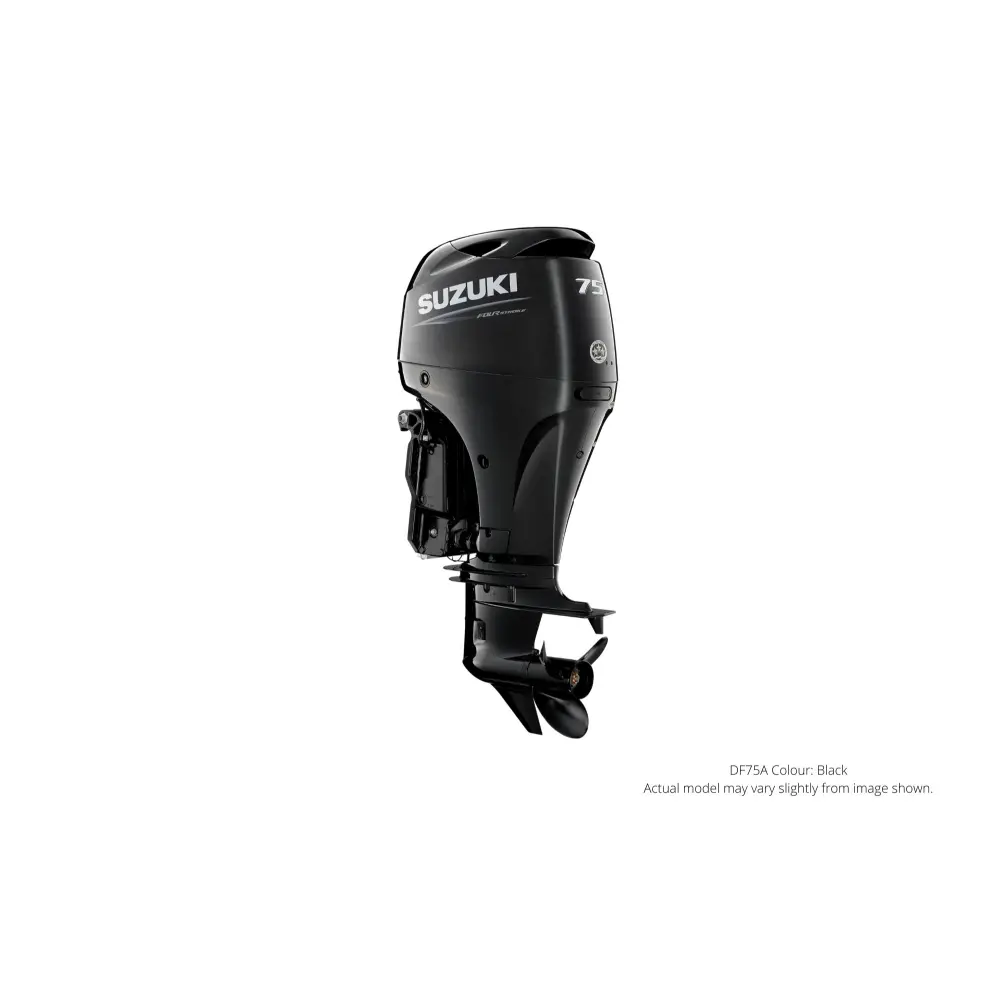

DF75A

Product Overview

Craft your journey on the water with the new Suzuki Marine DF75A, an exemplar of innovation with the Lean Burn Control System and a high-energy rotation for a powerful yet efficient boating experience.

Specifications

  • Specifications:
    • Starting System: Electric
    • Transom Height (in): L20
    • Weight (lbs): L156 (343)
    • Valve Train: DOHC 16 Valves
    • Valve Train Drive: Chain
    • Piston Displacement (cc): 1502
    • Maximum Output (HP): 75
    • Bore-Stroke (mm): 75 x 85
    • Operating Range (rpm): 5,300 – 6,300
    • Fuel Delivery System: Electronic Fuel Injection
    • Oil Pan Capacity (L): 4.0
    • Alternator: 12V 27A
    • Trim Type: Power Trim and Tilt
    • Gear Ratio: 2.59:1
    • Control System: Mechanical
    • Recommended Fuel: 87 Octane
    • Standard Propeller (in): Optional
    • Propeller Selection (Pitch): 13″ – 25″

Features

  • Features:
    • Lean Burn Control Technology for economical operation.
    • Offset driveshaft for more compact and balanced engine design.
    • Two-stage gear reduction for maximum power delivery.
    • Suzuki Easy Start System for no-hassle ignition.
    • Self-adjusting timing chain for reduced maintenance.
    • Tilt Limit System to protect the transom.
