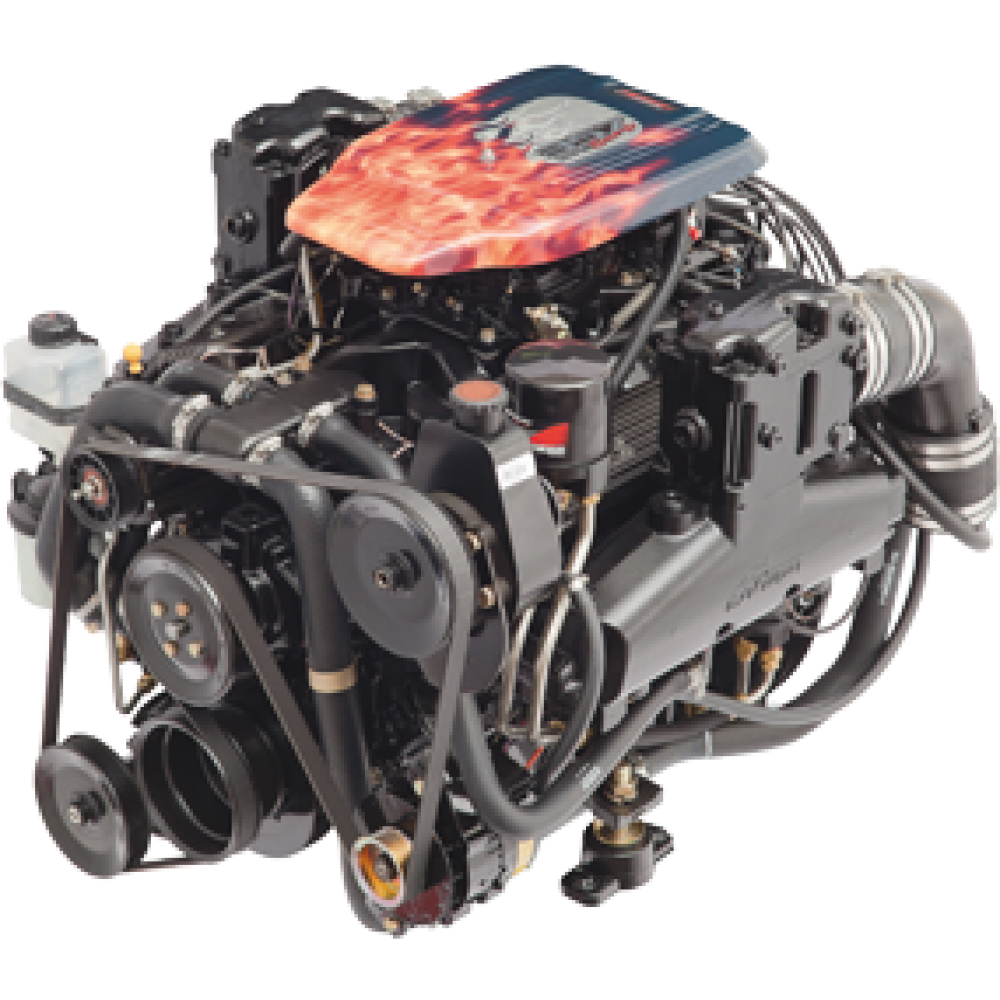

350 HP 383 MAG Stroker Bravo MPI

Product Overview

The 2024 Mercury 383 MAG Stroker Bravo MPI, with its impressive 350 HP, is the powerhouse for enthusiasts demanding high performance and reliability in a remanufactured engine.

Specifications

  • Specifications:
    • Power: 350 HP
    • Full Throttle Range: 4800-5200 RPM
    • Displacement: 383 CID (6.3L)
    • Engine Type: Remanufactured GM V8 Marine Iron Block & Gen+ Heads
    • Bore & Stroke: 4.030″ x 3.750″
    • Compression Ratio: 9.0:1
    • Rocker Arm Ratio: 1.6:1
    • Fuel Requirement: 87 Octane
    • Fuel System: MPI with Gen II Cool Fuel
    • Induction System: 2-piece Long Runner Intake with 75mm Throttle Body
    • Control System: ECM 555 with SmartCraft CAN Capability
    • Ignition System: Crank-fired High Voltage Switch with Knock Control & Platinum Plugs
    • Charging System: 65 Amp / 917 Watt Alternator
    • Water Drain System: Multi-Point Drain – Hand Removable Blue Drain Plugs
    • Exhaust System: Iron Manifold with Dry-Joint Exhaust Elbow
    • Cooling System: Thermostatically Controlled Raw Water – 160 F
    • Accessory Drive System: Serpentine Belt
    • Lubrication System: High Flow Oil Pump
    • Recommended Engine Oil: SAE 25-40 NMMA Certified FC-W Synthetic Blend
    • Audio Warning System: Oil Pressure, Coolant Temperature, Drive Lube, Water Pressure
    • Drive Ratios: Bravo One 1.50:1, 1.65:1; Bravo Two 1.81:1, 2.00:1, 2.20:1; Bravo Three 2.20:1, 2.43:1
    • Dimensions: 32″ x 30″ x 22″
    • Engine Weight: 932 lbs / 423 kg

Features

  • Features:
    • Multi-Port Fuel Injection (MPI): Ensures efficient fuel delivery and powerful performance.
    • SmartCraft Technology: Integrated for advanced engine monitoring and diagnostics.
    • Dry-Joint Exhaust System: Reduces corrosion and extends exhaust system life.
    • High Flow Oil Pump: Provides superior lubrication to enhance engine longevity.
    • One-Year Factory Backed Limited Warranty and Two-Year Mercury Product Protection: Extended assurance for your investment.
